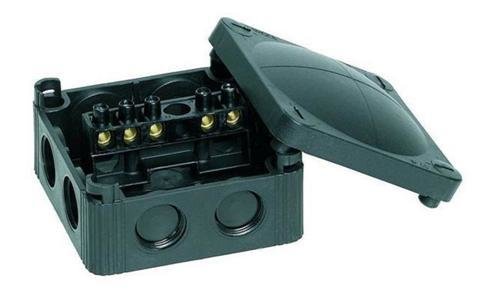

Wiska COMBI 308 IP66/67 Weatherproof Junction Box - Black - 85x85x51mm

The Wiska COMBI 308 IP66/67 Weatherproof Junction Box in Black. This Wiska box is resistant to ultraviolet, shatter-proof, impact-resistant and suitable for extreme conditions or outdoor installations. This Junction Box is Flame-retardent and halogen-free, highly resistant to animal or vegetable fats, diesel,mineral oil and weak acids.

The COMBI 308 junction box has 10% more room inside thanks to bevelled lid which comes with a rust-free quick-release lid plastic screws which only require a quarter turn to close.

COMBI 308 Boxes are pre threaded in which cable glands can be directly mounted into without locknuts.

Features

• Protection class to EN 60 529: IP 66
• Flame protection: Glow wire test 750°C acc. to EN 60695-2-11
• Temperature range: -30°C up to 100°C, intermittent up to approx. 120°C
• Voltage: 400 V
• Material: Polypropylene, reinforced glass fibre; Sealing: thermoplastic elastomere
• Terminals/poles: 4 mm²
• Fixing: With mounting clip or 4 internal openings outside of the sealing area:

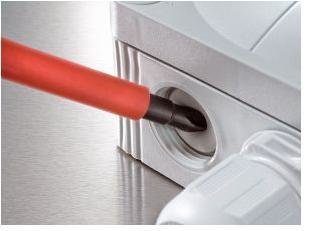

• 8 elastic self-sealing membranes for cable entry without mechanical devices
• 8 integrated M 20 threads, no locknuts necessary
• 4 captive quick-release lid screws

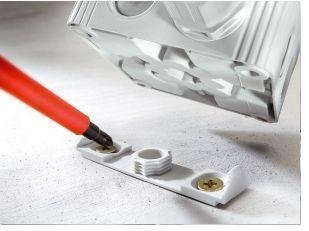

• Incl. mounting clip for snap-on fixing
• Colour RAL 7035 Black
