Safe-D F-Clip 50 is a fire-rated flexible cable clip that is supplied in flat form, and can be quickly folded to make a variety of shapes to most effectively secure cable installations.

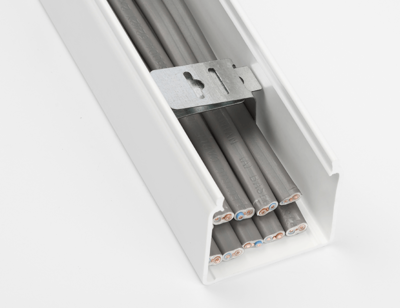

The first notches (either side of the 5.7mm hole) can be simply folded

to make vertical tabs; with the base being perfect for use in 50mm width

non-metallic trunking. The locking tab can then be passed through any

opposing notch, according to the volume of cables to be secured.

Being 165mm long, this F-Clip is most versatile, and can be easily

shaped however required, while users appreciate the pocket-friendly

design saves handling and fitting time. In fire-conditions D-Line fire

clips can withstand 970ºC for at least 2 hours, assuring that cable

installations will not collapse. F-Clips have been extensively

fire-tested on both wall planes and underside ceilings.

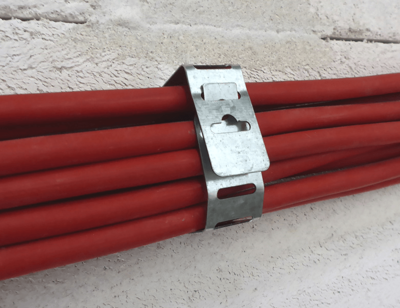

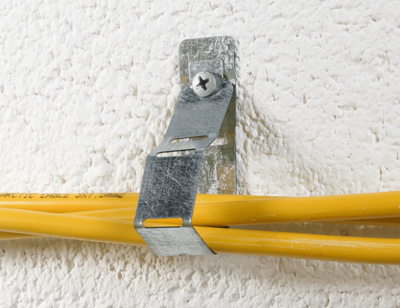

Installers should use a fire-rated fixing, such as D-Line D-Fixngs, and then simply fold-over tabs to secure cables.

• Supplied flat…
  • - Space efficient and pocket friendly
  • - Easier handling - to save installation time
  • - Easy folding to consider space and cable volume
  • - Perfect for shot fired fixings
• Fully safety tested and certified to BS5839 part 1 compliant
• >1200ºc melting point
• Non-corrosive finish
• Locking feature to hold cables most securely… simply push the tab through the preferred notch
• Locking tabs can be return-folded for a more secure installation
• 3x fixing holes for versatility, ideal for use with D-Line D-Fixings

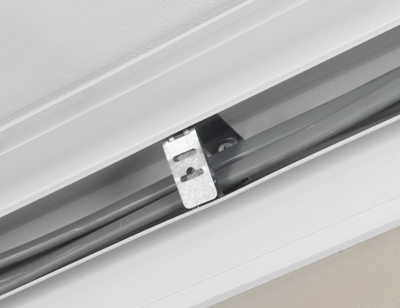

• Fit direct to surface, or in PVC trunkings
• Easy to later add or remove cable(s) - Can be opened/closed up to 5x

Dimensions

165mm (L) x 20mm (W) x 35mm (H Folded)

5.7mm Diameter Pre-drilled hole in base

Uniquely Versatile - for shaping as required
