Safe-D F-Clip 30 is a fire-rated flexible cable clip that is supplied in flat form, and can be quickly folded to make a variety of shapes to most effectively secure cable installations.

Users simply fold upright those notches which are either side of the

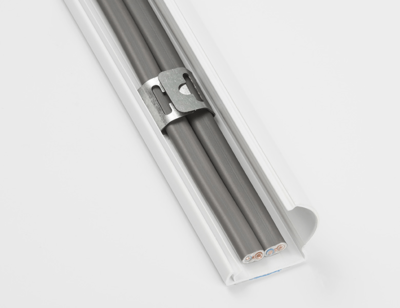

5.7mm fixing hole; to make a U-shape for use in 25x16mm mini-trunking,

or D-Line 30x15mm mini-trunking.

The flat-form is also ideal for shot-fired fixings which can be first-fixed, before sides are inwardly folded to effectively wrap around cables.

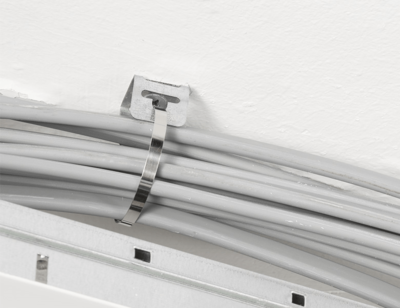

Side notches can also be used to thread steel fixing bands, useful for securing larger bundles of cables.

Installers should use a fire-rated fixing, such as D-Line D-Fixings, and then simply fold-over tabs to secure cables.

• Supplied flat…
  • - Space efficient and pocket friendly
  • - Easier handling - to save installation time
  • - Easy folding to consider space and cable volume
  • - Perfect for shot fired fixings
• Fully safety tested and certified as BS5839 part 1 compliant.
• >1200ºc melting point
• Non-corrosive finish
• 3x fixing holes for versatility, ideal for use with D-Line D-Fixings
• Thumb friendly, rounded corners, 20mm wide, and pliable for easy installation
• Fit direct to surface, or in PVC trunkings
• Easy to later add or remove cable(s)
• Uniquely versatile - for shaping as required

Dimensions

56mm (L) x 20mm (W) x 8mm (H Folded)

5.7mm Diameter Pre-drilled hole in base
